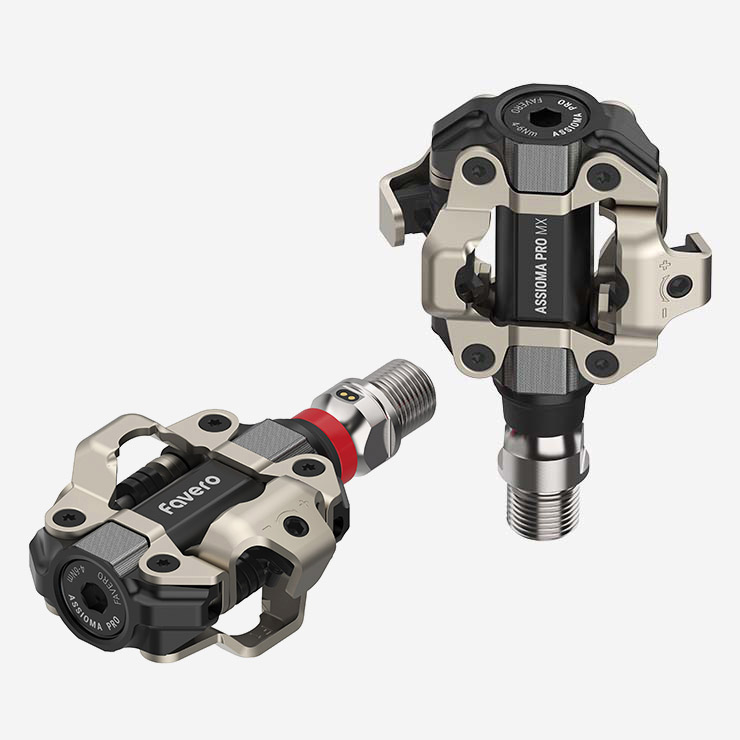

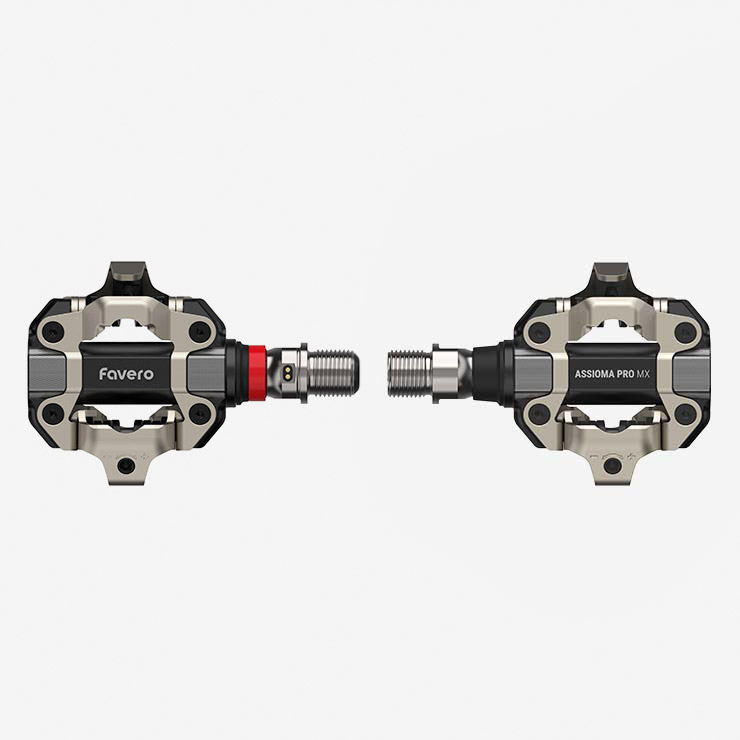

Assioma PRO MX-1
SPD® power meter for MTB and gravel with sensor on the left pedal only.
Upgrade option to PRO MX-2 always available.
773-10-01
Bike Type
MTB XC, CX, gravel
Technical Information
Power meter
- Left pedal with power sensor
- Right pedal without power sensor
Cleat compatibility
100% Shimano® SPD® cleat compatibility
Waterproofness rating
IP67
Thermal compensation
Yes
Pedal body
- SPD®-compatible clipless system in chromium molybdenum alloy with a surface hardness up to 800 HV
- 6061-T6 aluminium pedal body
Modular design
Interchangeable pedal bodies (MTB/road)
Compatible cleats
- Provided cleats (art. 773-00-62)
- Shimano® SM-SH51, SM-SH56 and CL-MT001 cleats
Oval-chainrings compatible
Yes
Warranty
2 Yrs
Made in
Italy
Size
Weight per power pedal
- Left pedal with power sensor: 195.3 g
- Right pedal without power sensor: 194.3 g
Pedal stack height
11.2 mm
Battery
Battery Type
Rechargeable, lithium-ion
Battery Life
At least 60 hours
Communication and sensor
Radio communication
ANT+, Bluetooth
Ant+ data vibile onthe Favero Assioma App
- Power
- Cadence
- PCO
- Power Phase (PP)
- Pedal Smoothness (PS)
- Torque Effectiveness (TE)
- Rider Position (no app Favero Assioma)
Data visible via Bluetooth
- Power
- Cadence
Cadence sensor
Included, inbuilt
Gyroscope
Included, inbuilt
Power calculation system
IAV (Instantaneous Angular Velocity-based)
Cycling Dynamics
Available
Cycling metrics
Advanced (PCO included – Platform Center Offset)
Accuracy power measurement
± 1%
A1 - A2
Power meter with sensor on the left side only
B
MTB-compatible SPD® cleats + 4 Washers, 2 cleat washers and 4 screws
C
1 Magnetic connector
D
Two-way charging cable
E
Greasing tools kit
F
Warranty and safety manual
G
Welcome flyer
